DIESEL FIRE PUMP 1500 GPM HEAD 80 METER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:

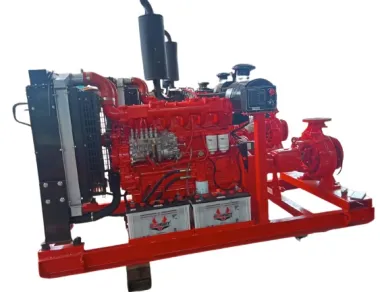

DIESEL FIRE PUMP
(CENTRIFUGAL END SUCTION)
MODEL : DFP.1500-8.DEF132-30.GS
CAPACITY : 1500 US GPM (341 m³/h)
HEAD : 80 Meter (8 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender
Model : DEF6.7TDI
Power : 150 kW
Speed : 3000 RPM
Cyl - Bore * Stroke : 6 - 102 * 118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS100-315L
Impeller diameter : 289 mm
Shaft Power : 118 kW
Inlet * outlet : 5 inch * 4 inch
Kelengkapan standard :
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Coupling Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 24V
7. Daily Fuel Tank 200L
(CENTRIFUGAL END SUCTION)
MODEL : DFP.1500-8.DEF132-30.GS
CAPACITY : 1500 US GPM (341 m³/h)
HEAD : 80 Meter (8 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender
Model : DEF6.7TDI
Power : 150 kW
Speed : 3000 RPM
Cyl - Bore * Stroke : 6 - 102 * 118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS100-315L
Impeller diameter : 289 mm
Shaft Power : 118 kW
Inlet * outlet : 5 inch * 4 inch
Kelengkapan standard :
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Coupling Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 24V
7. Daily Fuel Tank 200L
