DIESEL FIRE PUMP 1500 GPM HEAD 100 METER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:

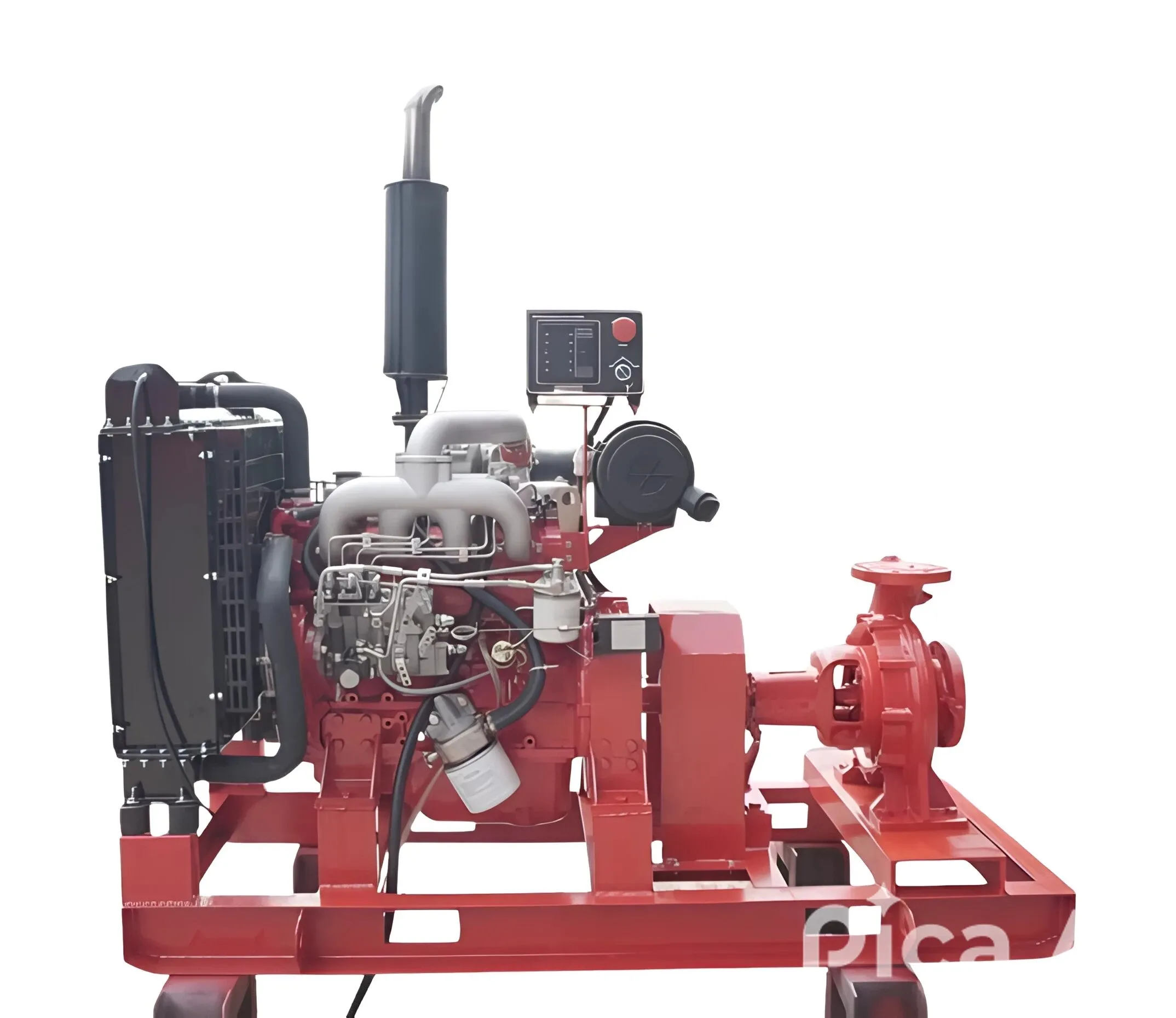

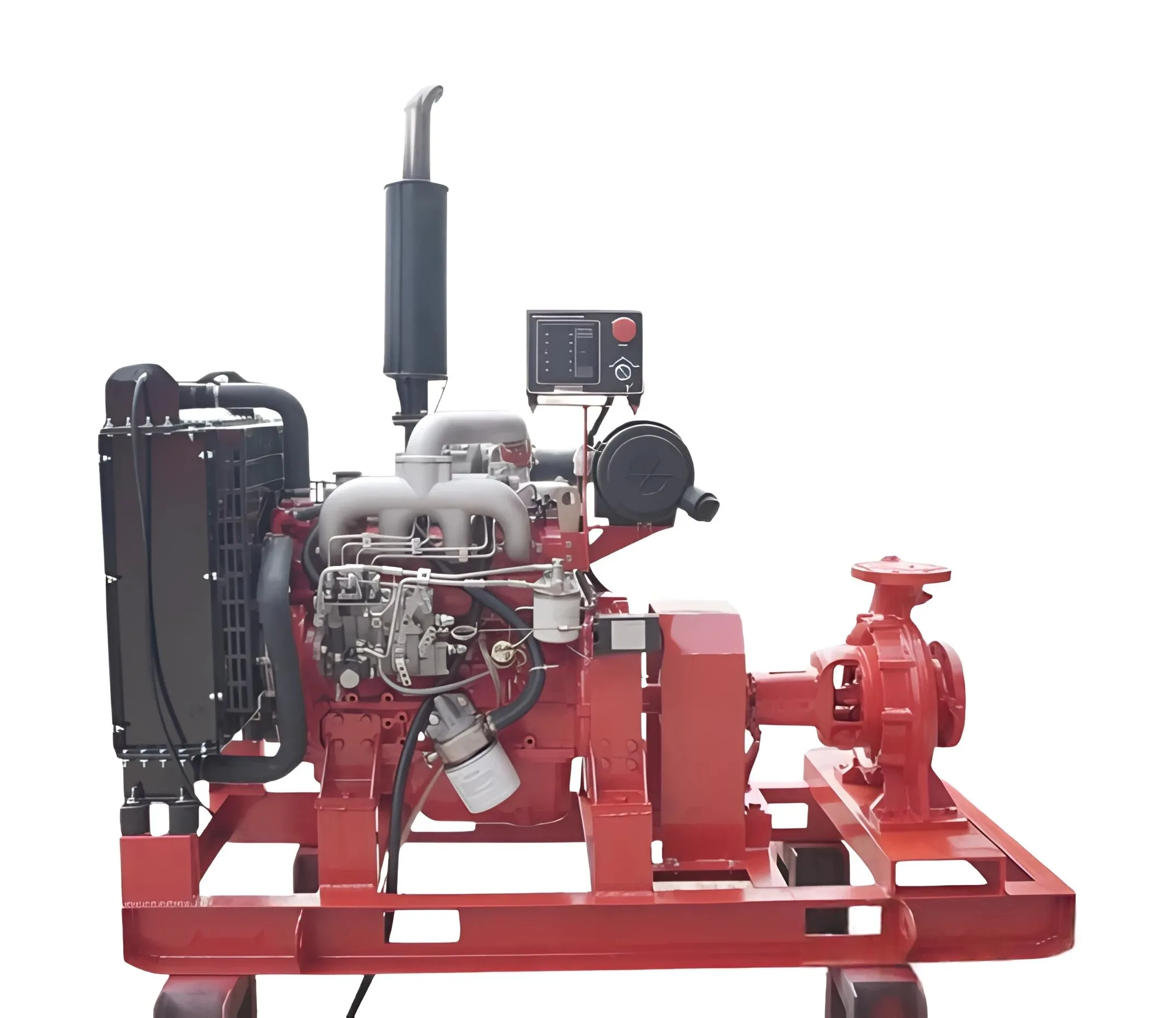

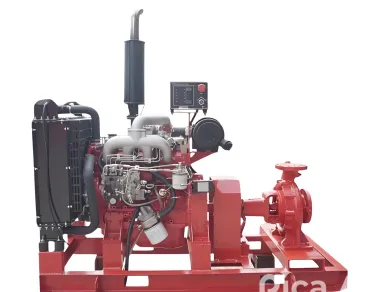

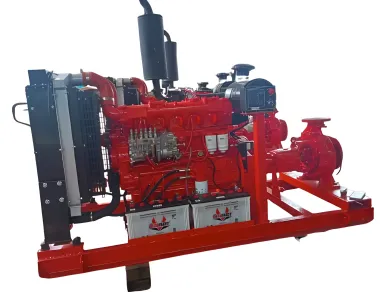

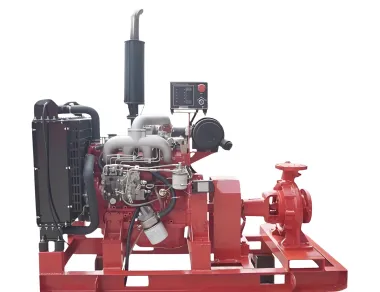

DIESEL FIRE PUMP
(CENTRIFUGAL END SUCTION)
MODEL : DFP.1500.10-DEF160-30
CAPACITY : 1500 GPM (341 m³/h)
HEAD : 100 Meter (10 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender
Model : DEF6.7TDI-D230
Power : 190 kW
Speed : 3000 RPM
Cyl - Bore * Stroke : 6 - 102 * 118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS125-315
Impeller diameter : 309 mm
Shaft Power : 148 kW
Inlet * outlet : 6 inch * 5 inch
Kelengkapan standard :
1. Heavy Duty Base Plate / Sasis UNP
2. FCL Coupling
3. Coupling Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 24V
7. Daily Fuel Tank 200L
