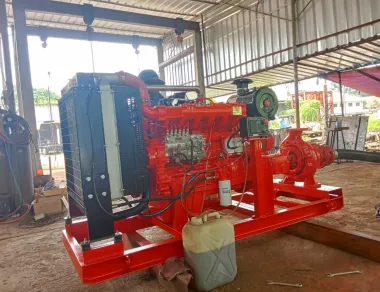

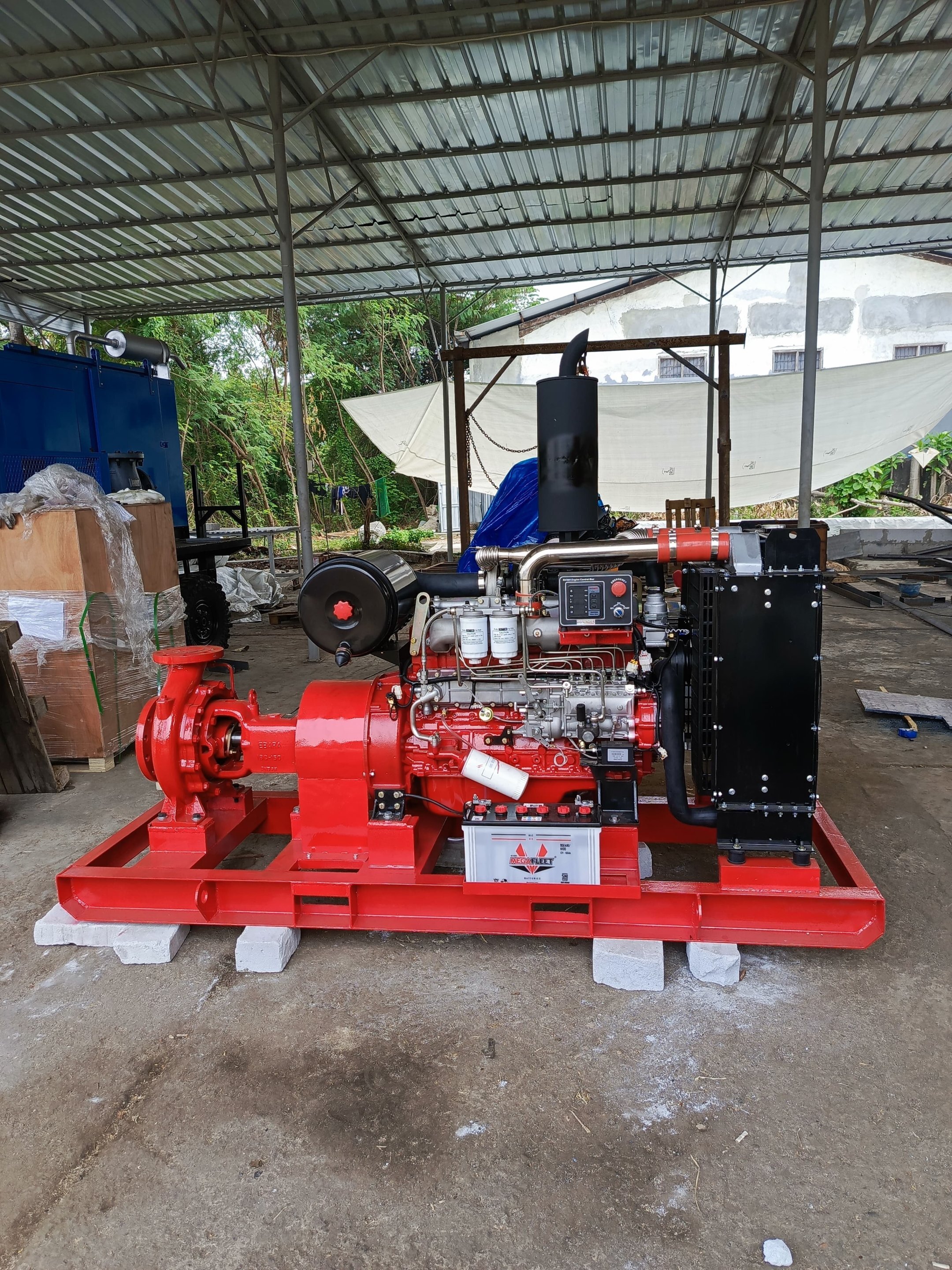

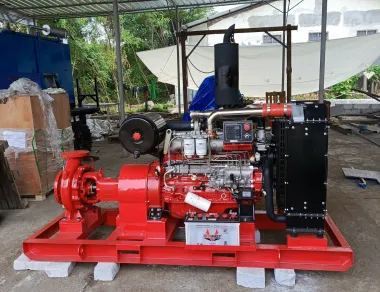

DIESEL FIRE PUMP 750 GPM HEAD 120 METER
DEFENDER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:
MODEL : DFP.750.12-DEF90-30
CAPACITY : 750 GPM (170 m³/h)
HEAD : 120 Meter (12 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis

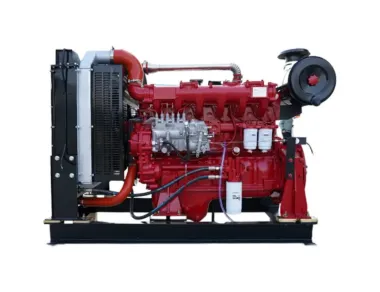

1. Diesel Engine Driven :
Brand : Defender (Isuzu Technology)
Model :DEF6.7TDI-D200
Power : 150 kW
Speed : 3000 RPM
Cyl - Bore * Stroke :6 - 102 x 118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS65-315
Impeller diameter : 320 mm
Shaft Power : 82 Kw
Inlet * outlet : 3 inch * 2.5 inch
KelengkapanStandard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 24V
7. Daily Fuel Tank 200L
