DIESEL FIRE PUMP 500 GPM (ENGINE ISUZU JIANGXI)
DEFENDER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:
MODEL : DFP.500.8-DEF45-30.ISZ
CAPACITY : 500 GPM (113 m³/h)
HEAD : 80 Meter (8 Bar)

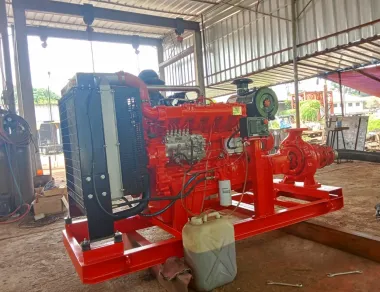

1 Set Diesel Engine Driven merk ISUZU JIANGXI (ISUZU ORIGNAL) + Bare Pump Ebara.
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Isuzu Jiangxi
Model : JE493ZDB
Power : 55 kW
Speed : 3000 RPM
Cyl - Bore * Stroke : 4 - 102* 118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS65-250
Impeller diameter : 334 mm
Shaft Power : 45 Kw
Inlet * outlet : 3 inch * 2.5 inch
KelengkapanStandard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 12V
7. Daily Fuel Tank 200L
CAPACITY : 500 GPM (113 m³/h)
HEAD : 80 Meter (8 Bar)
1 Set Diesel Engine Driven merk ISUZU JIANGXI (ISUZU ORIGNAL) + Bare Pump Ebara.
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Isuzu Jiangxi
Model : JE493ZDB
Power : 55 kW
Speed : 3000 RPM
Cyl - Bore * Stroke : 4 - 102* 118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS65-250
Impeller diameter : 334 mm
Shaft Power : 45 Kw
Inlet * outlet : 3 inch * 2.5 inch
KelengkapanStandard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 12V
7. Daily Fuel Tank 200L
