DIESEL FIRE PUMP 1000 GPM HEAD 140 METER
DEFENDER
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
:
:
:
:
:
:
:
:
MODEL : DFP.1000.14-DEF132-30
CAPACITY : 1000 GPM (228 m³/h)
HEAD : 140 Meter (14 Bar)

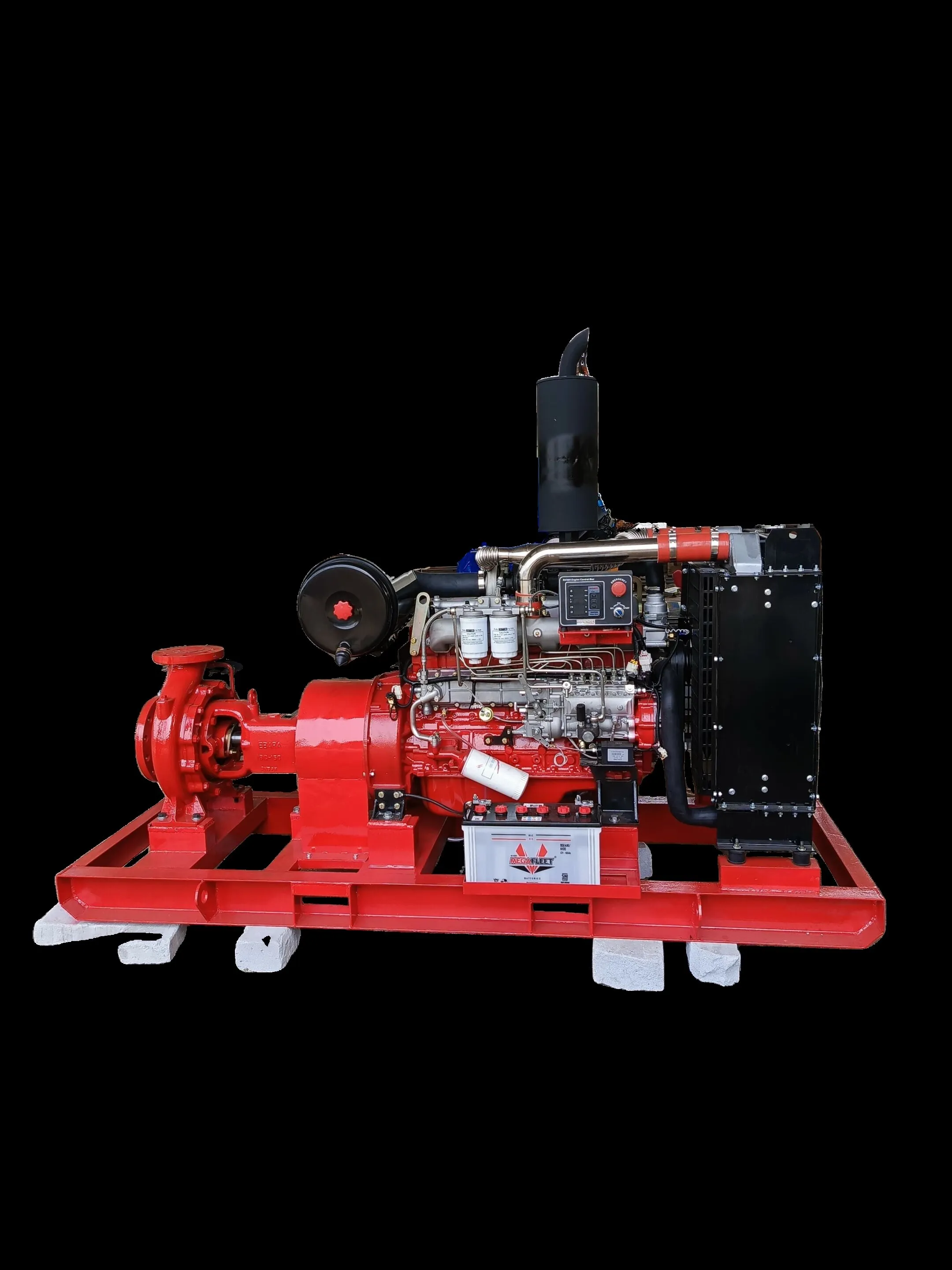

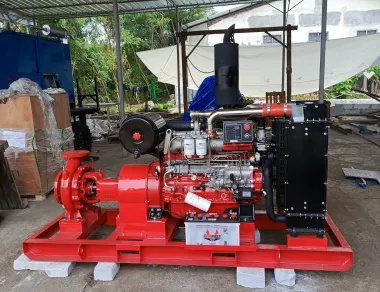

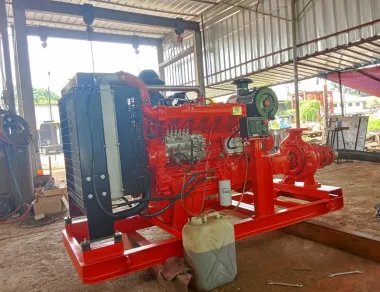

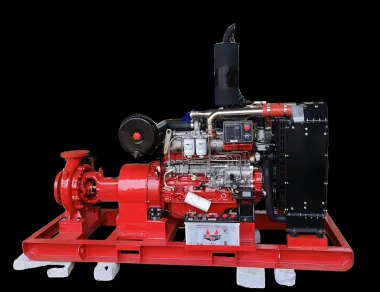

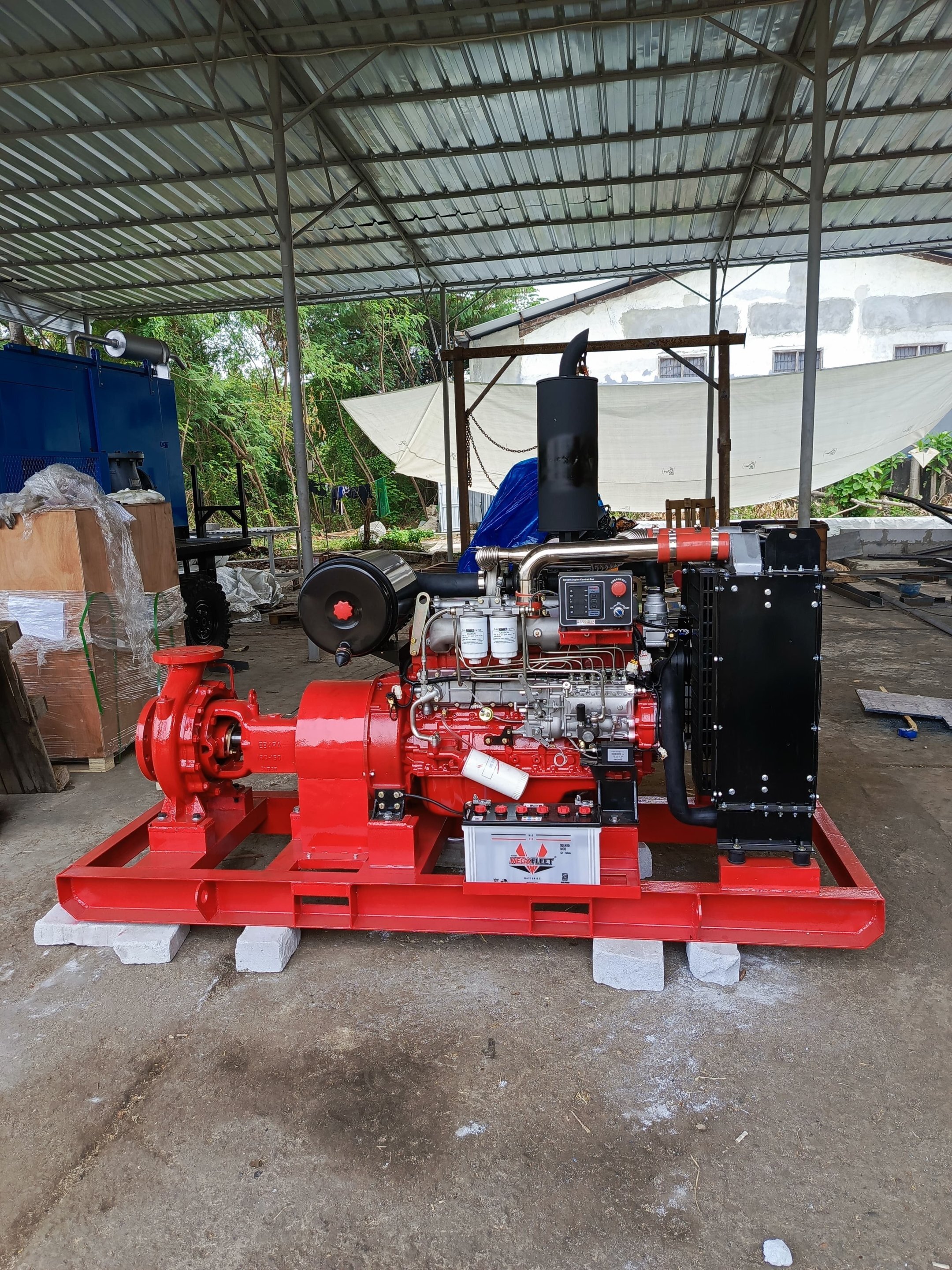

1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender
Model : DEF5.8TDI-D230
Power : 190 kW
Speed : 3000 RPM
Cyl - Bore * Stroke :6 - 102x118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS80-315L
Impeller diameter : 334 mm
Shaft Power : 130 Kw
Inlet * outlet : 4 inch * 3 inch
KelengkapanStandard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 24V
7. Daily Fuel Tank 200L
CAPACITY : 1000 GPM (228 m³/h)
HEAD : 140 Meter (14 Bar)
1 Set Diesel Engine Driven + Bare Pump
Terkopel di atas base plate / sasis
1. Diesel Engine Driven :
Brand : Defender
Model : DEF5.8TDI-D230
Power : 190 kW
Speed : 3000 RPM
Cyl - Bore * Stroke :6 - 102x118 mm
2. Bare Pompa :
Brand : Ebara
Type : Centrifugal End Suction
Model : GS80-315L
Impeller diameter : 334 mm
Shaft Power : 130 Kw
Inlet * outlet : 4 inch * 3 inch
KelengkapanStandard:
1. Heavy Duty Base Plate / Sasis UNP
2. Fcl Coupling
3. Couplig Guard
4. Panel Engine Starter (Digital Parameter)
5. Industrial Silencer (Knalpot)
6. Accu 24V
7. Daily Fuel Tank 200L
