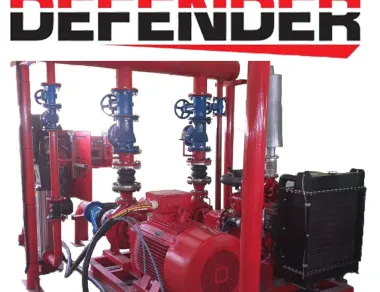

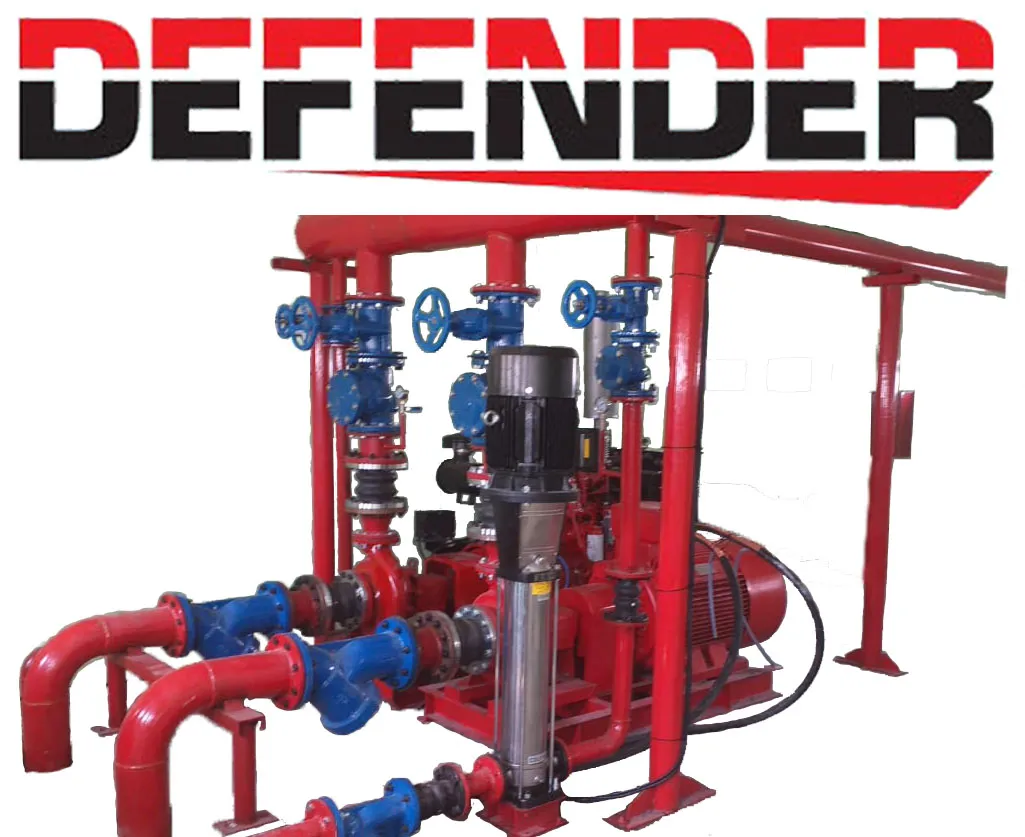

Pompa Hydrant Pump Set 500 gpm 80 mtr
DEFENDER
| DEFENDER Hydrant Pump 500 GPM Head 80 mtr | ||||||
| Model : DEF 45-508 ISDG | ||||||
| 1.A | Diesel Hydrant Pump ( Standart DC Control Panel ) | |||||
| Model | : DEF 45-508 ISDG | |||||
| Pump Brand | : Ebara | |||||
| Type | : 100 x80 FSjA | |||||
| Inlet x outlet | : 4 Inch x 3 Inch | |||||
| Kapasitas | : 500 GPM | |||||
| Head | : Max 80 mtr | |||||
| Power | : 45 kw @ 2900 rpm | |||||
| Diesel Spesification | ||||||
| Engine Brand | : Defender By Isuzu Technology | |||||
| Type | : 4J/4B Series | |||||
| Admission mehtod | : Natural Aspirated | |||||
| Max power | : 66 kw | |||||
| Auxiliary pump power | : 47 kw | |||||
| Bore * stroke | : 93*102 | |||||
| Engine Speed | : 2900 RPM | |||||
| Fuel Consumption rate | : 14.2 L/Hour | |||||
| Base Plate with Standart Coupled FCL Type | ||||||
| Fuel Tank 120 Liter | ||||||
| Flexible and Industrial silencer | ||||||
| Accu 70 A 24 Volt | ||||||
| Digital dc panel control | ||||||
| Simple monitoring engine with protection | ||||||
| *Spesification can be change without prior notice | ||||||
| 1.B | Automatic Diesel Control Panel c/w battery charger | |||||
| (termasuk pemasangan kabel max 15 mtr) | ||||||
| 2.A | Electric Hydrant Pump | |||||
| Type | : Centrifugal End Suction | |||||
| Merk | : Ebara 100 x 80 FSJA | |||||
| Capasitas | : 500 GPM | |||||
| Head | : Max 80 mtr | |||||
| Electric Motor | : 45kw/2900rpm/2 Pole | |||||
| Merk | : Electrim / Equivalen | |||||
| C/W | : Baseplate, Panel Star Delta 45kw | |||||
| 2.B | Electric Pump Control Panel 45 kw StarDelta | |||||
| 3.A | Jockey Pump | |||||
| Type | : Vertical Multistage | |||||
| Brand | : CNP CLDF 8-13 | |||||
| Capasitas | : 10 M3/jam | |||||
| Head | : 110 mtr | |||||
| Daya | : 5,5 kw/2 Pole | |||||
| C/W | : Star Delta Control panel | |||||
| Harga Total | Rp493.000.000 | |||||
| *Harga diatas belum termasuk Diskon & PPN | ||||||
| *Harga lengkap dapat di download pada E-Brochure diatas | ||||||
