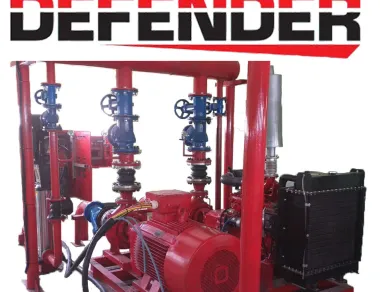

Hydrant Pump Set 500 GPM Head 110 mtr
DEFENDER
| DEFENDER Hydrant Pump 500 GPM Head 110 mtr | |||||
| Model : DEF 75-5012 | |||||
| 1.A | Diesel Hydrant Pump ( Standart DC Control Panel ) | ||||
| Model | : DEF 75-5012 | ||||
| Pump Brand | : Ebara | ||||
| Type | : 100 x 65 FSKA | ||||
| Inlet x outlet | : 4 inch x 2,5 inch | ||||
| Kapasitas | : 500 GPM | ||||
| Head | : Max 110 mtr | ||||
| Power | : 75 kw @ 2900 rpm | ||||
| Diesel Spesification | |||||
| Engine Brand | : Defender By Isuzu Technology | ||||
| Type | : 4J/4B Series | ||||
| Admission mehtod | : Natural Aspirated | ||||
| Max power | : 90 kw | ||||
| Auxiliary pump power | : 75 kw | ||||
| Bore * stroke | : 102*118 | ||||
| Engine Speed | : 2900 RPM | ||||
| Fuel Consumption rate | : 14,2 L/Hour | ||||
| Base Plate with Standart Coupled FCL Type | |||||
| Fuel Tank 120 Liter | |||||
| Flexible and Industrial silencer | |||||
| Accu 70 A 24 Volt | |||||
| Digital dc panel control | |||||
| Simple monitoring engine with protection | |||||
| *Spesification can be change without prior notice | |||||
| 1.B | Automatic Diesel Control Panel c/w battery charger | ||||
| (termasuk pemasangan kabel max 15 mtr) | |||||
| 2.A | Electric Hydrant Pump | ||||
| Type | : Centrifugal End Suction | ||||
| Merk | : Ebara 100 x 65 FSKA | ||||
| Capasitas | : 500 GPM | ||||
| Head | : Max 110 mtr | ||||
| Electric Motor | : 75 kw/2900rpm/2 pole | ||||
| Merk | : Electrim / yuema | ||||
| C/W | : Base Plate & Coupling | ||||
| 2.B | Electric Pump Control Panel 75 kw StarDelta | ||||
| 3.A | Jockey Pump | ||||
| Type | : Vertical Multistage | ||||
| Brand | : CNP CLDF 8-13 | ||||
| Capasitas | : 10 M3/jam | ||||
| Head | : 110 mtr | ||||
| Daya | : 5,5 kw/2 Pole | ||||
| C/W | : Star Delta Control panel | ||||
| Harga Total | Rp597.000.000 | ||||
| *Harga diatas belum termasuk Diskon & PPN | |||||
| *Harga lengkap dapat di download pada E-Brochure diatas | |||||
