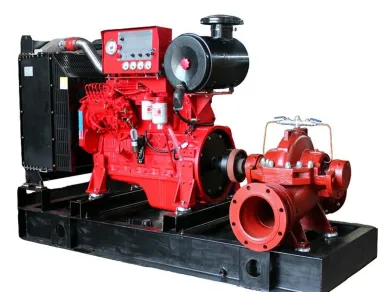

Diesel Fire Pump Set DEF. 6BT5.9 Cap 750 GPM Head 110 Meter Standart control engine box | Diesel Engine Defender

Diesel Fire Pump Set
DEF. 6BT5.9
Cap 750 GPM
Head 110 Meter
Standart control engine box

DEFENDER

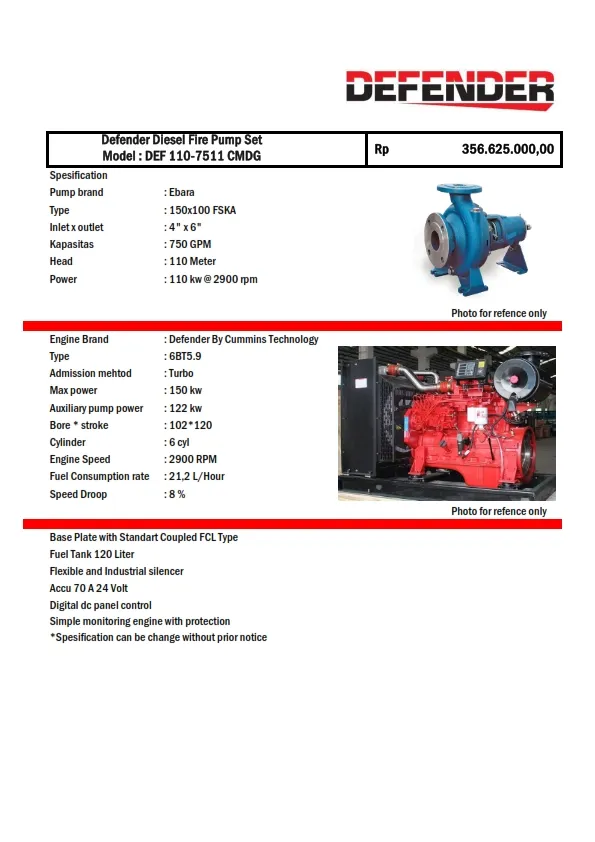

Defender Diesel Fire Pump Set
Model : DEF 110-7511 CMDG

Spesification
Pump brand	: Ebara
Type	: 150x100 FSKA
Inlet x outlet	: 4" x 6"
Kapasitas	: 750 GPM
Head	: 110 Meter
Power	: 110 kw @ 2900 rpm

Engine Brand	: Defender By Cummins Technology
Type	: 6BT5.9
Admission mehtod	: Turbo
Max power	: 150 kw
Auxiliary pump power	: 122 kw
Bore * stroke	: 102*120
Cylinder	: 6 cyl
Engine Speed	: 2900 RPM
Fuel Consumption rate	: 21,2 L/Hour
Speed Droop	: 8 %

Base Plate with Standart Coupled FCL Type
Fuel Tank 120 Liter
Flexible and Industrial silencer
Accu 70 A 24 Volt
Digital dc panel control
Simple monitoring engine with protection

Engine

Generator

KVA

No. Of Cylinder

Bore x Stroke

Piston Disp

Fuel Consumption

Oil Capacity

:
xmlns:x="urn:schemas-microsoft-com:office:excel"
xmlns="http://www.w3.org/TR/REC-html40">

Defender Diesel Fire Pump Set
Model : DEF 110-7511 CMDG

Spesification
Pump brand	: Ebara
Type	: 150x100 FSKA style='mso-spacerun:yes'>
Inlet x outlet	: 4" x 6"
Kapasitas	: 750 GPM
Head	: 110 Meter
Power	: 110 kw @ 2900 rpm

Engine Brand	: Defender By Cummins Technology
Type style='mso-spacerun:yes'>	: 6BT5.9
Admission mehtod	: Turbo
Max power	: 150 kw
Auxiliary pump power style='mso-spacerun:yes'>	: 122 kw
Bore * stroke style='mso-spacerun:yes'>	: 102*120
Cylinder	: 6 cyl
Engine Speed	: 2900 RPM
Fuel Consumption rate	: 21,2 L/Hour
Speed Droop	: 8 %

Base Plate with Standart Coupled FCL Type
Fuel Tank 120 Liter style='mso-spacerun:yes'>
Flexible and Industrial silencer
Accu 70 A 24 Volt style='mso-spacerun:yes'>
Digital dc panel control
Simple monitoring engine with protection
