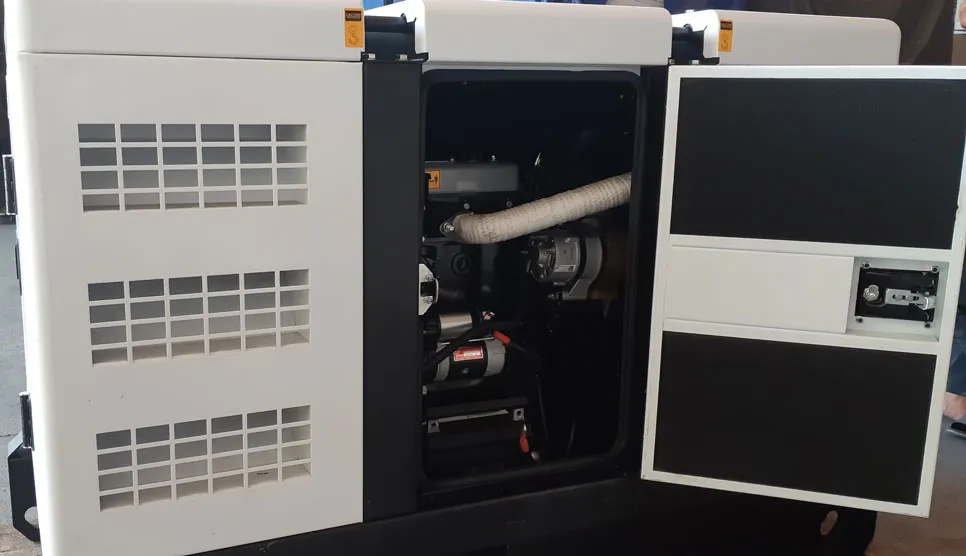

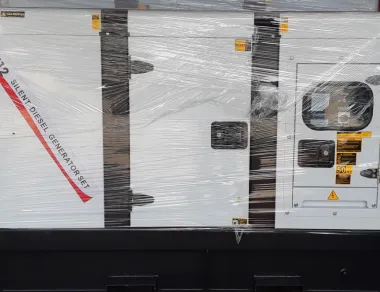

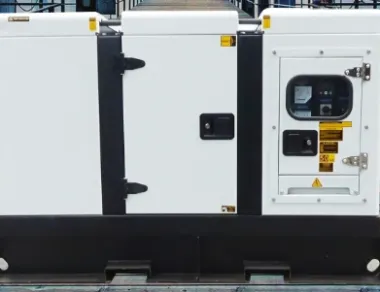

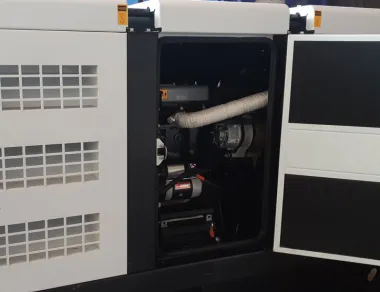

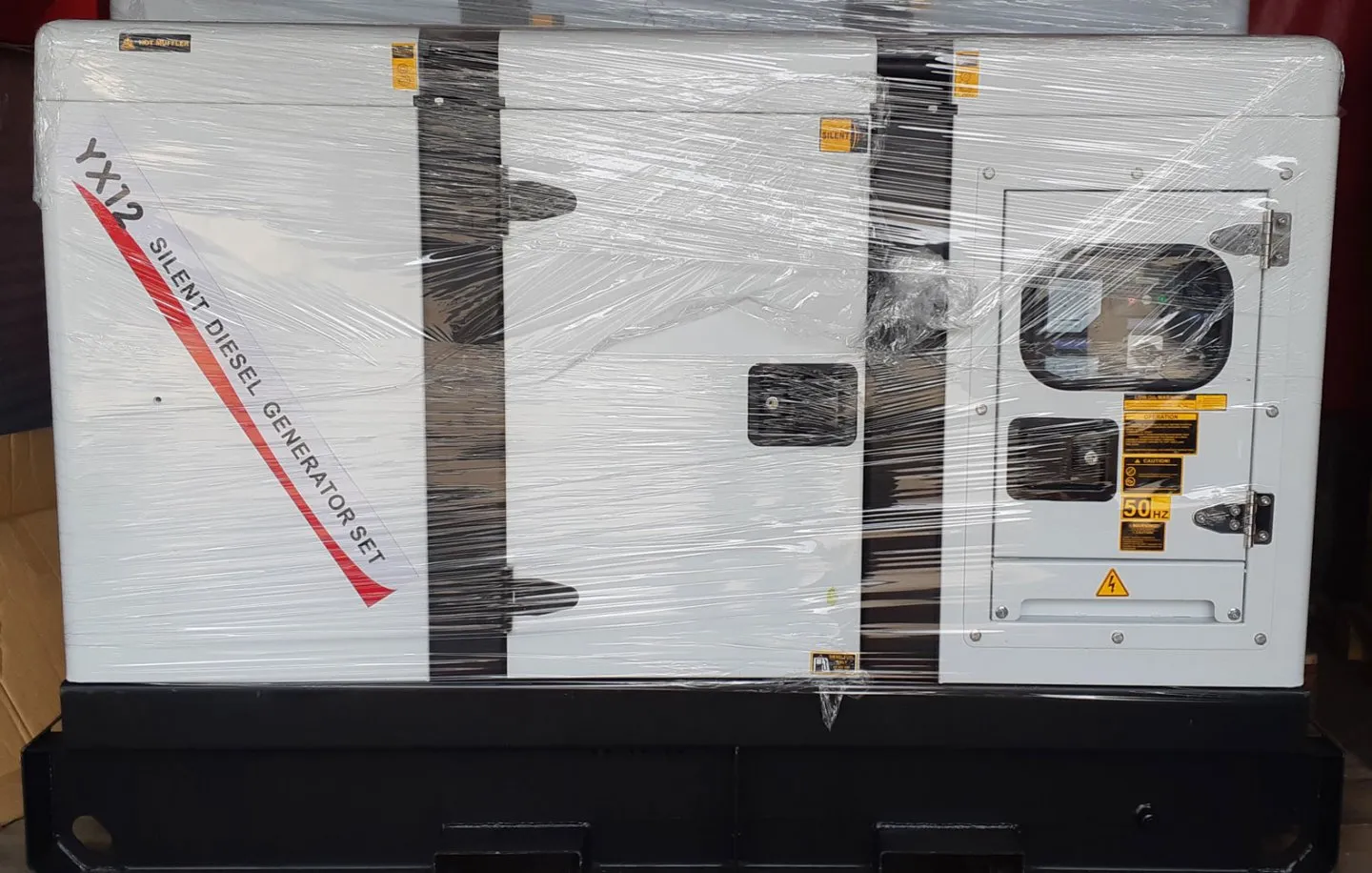

Genset Diesel 12 kw 3 Phase
Rp 73.500.000,- ......... Nego !!!!!
YAMAKOYO
Genset Lainnya Genset Diesel 12 kw 3 PhaseRp 73500000  Nego  silent generator yx series 001Genset Lainnya Genset Diesel 12 kw 3 PhaseRp 73500000  Nego  silent generator yx series 001Genset Lainnya Genset Diesel 12 kw 3 PhaseRp 73500000  Nego  silent generator yx series 001
GENSET MODEL YX-12
Rated Power (KW) 12
Max Power (KW) 13
Rated Current (A) 22,8
Rated Voltage (V) 220/380
Frequency (HZ) 50
Rated Speed (RPM) 1500
ENGINE MODEL Y480BD
Rated Output (KW) 14
Governing Method MECHANICAL
Bore x Stroke (mm) 80*90
Intaking Method Natural Aspirated
Oil Volume (L) 7
Fuel Consumption 247
Fuel Consumption (L/H) 4
Oil Consumption (L/H) 1,08
Displacement L 1,81
Compression ratio 17:1
Water Volume (L) 10
Cooling System Closed water cooled
Starting Method D.C 12V or 24V electric start
ALTERNATOR MODEL BC164D
Power Factor 0,8 lagging for 3-Phase
Phase / Connection 3-Phase 4-Wire connected
Excitation Method Brush/Brushless Excitation
Insulation Class H
Protection Class IP21
Voltage Regulation Automatic
CONTROL SYSTEM DeepSea DSE3110
Dimension and Weight
Net Weight 680
Dimension (m/ Open type) 1,350 x 0,67 x 1,03
Net Weight 850
Dimension (m/ SIlent type) 1,7 x 0,9 x 1,15
Engine
Generator
KVA
KW
No. Of Cylinder
Bore x Stroke
Piston Disp
Fuel Consumption
Oil Capacity
:
xmlns:x="urn:schemas-microsoft-com:office:excel"
xmlns="http://www.w3.org/TR/REC-html40">








































































































































































GENSET
MODEL
YX-12
Rated Power (KW) 12
Max Power (KW) 13
Rated Current (A) 22,8
Rated Voltage (V) 220/380
Frequency (HZ) 50
Rated Speed (RPM) 1500
ENGINE MODEL Y480BD
Rated Output (KW) 14
Governing Method MECHANICAL
Bore x Stroke (mm) 80*90
Intaking Method Natural Aspirated
Oil Volume (L) 7
Fuel Consumption 247
Fuel Consumption (L/H) 4
Oil Consumption (L/H) 1,08
Displacement L 1,81
Compression ratio 17:1
Water Volume (L) 10
Cooling System Closed water cooled
Starting Method D.C 12V or 24V electric start
ALTERNATOR MODEL BC164D
Power Factor 0,8 lagging for 3-Phase
Phase / Connection 3-Phase 4-Wire connected
Excitation Method Brush/Brushless Excitation
Insulation Class H
Protection Class IP21
Voltage Regulation Automatic
CONTROL SYSTEM DeepSea DSE3110
Dimension and Weight
Net Weight 680
Dimension (m/ Open type) 1,350 x 0,67 x 1,03
Net Weight 850
Dimension (m/ SIlent
type)
1,7 x 0,9 x 1,15











:
:
:
:
:
:
:
:
Anugrah Diesel kembali menghadirkan Genset Diesel dengan harga terjangkau


Genset Diesel Engine
Merk : Yamakoyo by Anugrah Diesel
Engine : Weifang / Weichai
Alternator : Copy stamford
Daya : 12 kW / 12.000 Watt (Full Load)

Price List -------------- Rp 73.500.000
Hubungi kami untuk mendapatkan harga terbaiknya

- Harga belum termasuk PPN 10%
- Garansi 1 Tahun / 2000 Jam
- Harga dan stock tidak mengikat dan dapat berubah sewaktu-waktu
- Harga franco gudang jakarta
